High Brightness 850Nits 15.6inch FHD TFT Module HSD156JUW2-A10 for Industrial Automotive

  • 1
  • 2

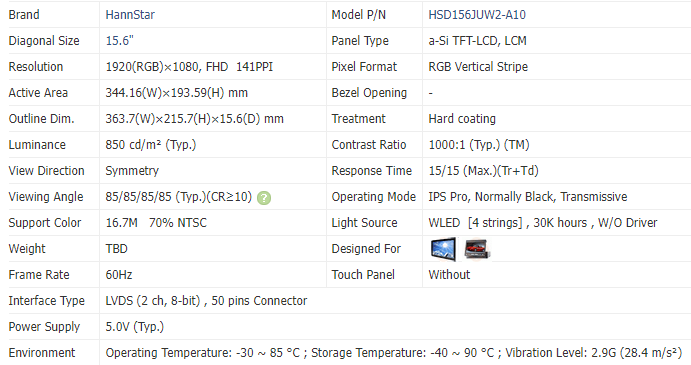

Brand Name : HANNSTAR

Model Number : HSD156JUW2-A10

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 5000pcs/month

Delivery Time : 3-5 working days

Packaging Details : factory original packing

Size : 15.6inch

Resolution : 1920(RGB)×1080

Brightness : 850 cd/m² (Typ.)

Viewing Angle : 85/85/85/85 (Typ.)(CR≥10)

Signal Interface : LVDS (2 ch, 8-bit) , 50 pins Connector

Operating Temp. : -30 ~ 85 °C

Storage Temp. : -40 ~ 90 °C

Vibration Level : 2.9G (28.4 m/s²)

Application : Industry and vehicle

Contact Now

15.6Inch FHD 850Nits Brightness & Wide Temperature TFT Module HSD156JUW2-A10 for Indstry and Automotive application

HSD156JUW2-A10 is a 15.6" diagonal a-Si TFT-LCD display panel product from HannStar Display Corporation (hereafter called HannStar), with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 85°C , a storage temperature range of -40 ~ 90°C , and the maximal vibration level of 2.9G (28.4 m/s²). It's general features are summarized in the following: Wide Temperature, 3G Vibration, Hight Brightness, WLED Backlight . Based on its features, JB recommend that this model be applied to Outdoor High Brightness, Automotive Display etc.
