RGB 640 X 480 LCD Display Screen 5.7Inch Module Tft Lcd Panel JB0570BDM21 4 Wire Resistive Touch

Product Categories

JINGBAO INTERNATIONAL CO.,LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Model Number : JB0570BDM21

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T

Supply Ability : 5000pcs/month

Delivery Time : 3-5 working days

Packaging Details : factory original packing

Size : 5.7Inch

Resolution : 640(RGB) x 480

Luminance : 530 cd/m² (Typ.)

Interface : LVDS

Working Temp. : -20 ~ 70 °C

Application : Industry

Touch : 4 Wire Resistive Touch

Contact Now

5.7Inch resolution 640(RGB) x 480 Lcd Panel JB0570BDM21 with 4 Wire Resistive Touch for Industry use

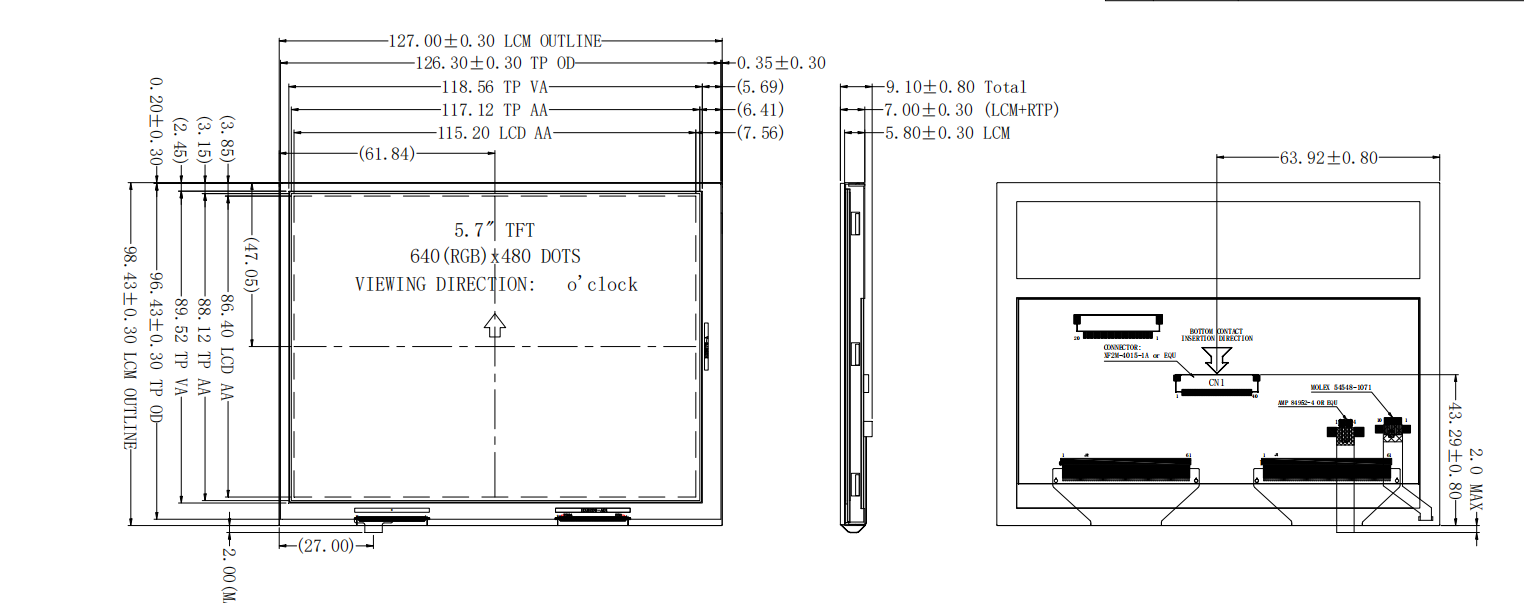

This data sheet is to introduce the specification of JB0570BDM21, active matrix TFT

module. It is composed of a color TFT-LCD panel, driver ICs, FPC, RTP and a backlight unit. The

5.7” display area contains 640(RGB) x 480 pixels.

Product Tags:

640 x 480 LCD Display Screen
