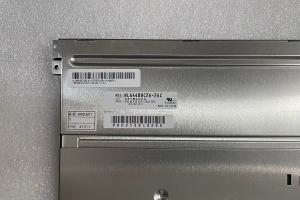

8.4Inch High Brightness Tft Display 640 × 480 VGA 900Cd/M2 NL6448BC26-26C For Outdoor

Model Number : NL6448BC26-26C

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T

Supply Ability : 5000pcs/month

Delivery Time : 3-5 working days

Packaging Details : factory original packing

Size : 8.4inch

Resolution : 640(RGB)×480, VGA

Luminance : 900 cd/m² (Typ.)

Viewing Angle : 80/80/80/80 (Typ.)(CR≥10)

Signal Interface : CMOS (1 ch, 6-bit) , 31 pins Connector

Operating Temp. : -30 ~ 80 °C

Storage Temp : -30 ~ 80 °C

Vibration Level : 2.0G (19.6 m/s²)

Contact Now

8.4Inch 640(RGB)×480, VGA Brightness 900 Cd/M² Lcd Panel NL6448BC26-26C For Outdoor Industrial Application

The NL6448BC26-26C is a 8.4 inch diagonal a-Si TFT-LCD display panel product with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -30 ~ 80°C , a storage temperature range of -30 ~ 80°C , and the maximal vibration level of 2.0G (19.6 m/s²). It's general features are summarized in the following: Wide Temperature, Hight Brightness, Lamp Repaceable, WLED Backlight, Life ≥ 70K hours, 180° Reverse , T-EVT. Based on its features, JB recommend that this model be applied to Industrial etc

Brand
Model P/N
NL6448BC26-26C
Diagonal Size
8.4"
Panel Type
a-Si TFT-LCD, LCM
Resolution
640(RGB)×480, VGA 95PPI
Pixel Format
RGB Vertical Stripe
Active Area
170.88(W)×128.16(H) mm
Bezel Opening
174.0(W)×131.4(H) mm
Outline Size
200(W)×152(H) ×8.7(D) mm
Surface
Clear, Hard coating (2H), Antireflection
Brightness
900 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Viewing Angle
80/80/80/80 (Typ.)(CR≥10) 8.4Inch High Brightness Tft Display 640 × 480 VGA 900Cd/M2 NL6448BC26-26C For Outdoor
Display Mode
TN, Normally White, Transmissive 8.4Inch High Brightness Tft Display 640 × 480 VGA 900Cd/M2 NL6448BC26-26C For Outdoor
Best View on
6 o'clock
Response Time
3/15 (Typ.)(Tr/Td)
Display Colors
262K 40% NTSC
Lamp Type
4 strings WLED , 70K hours , Without Driver
Frequency
60Hz
Touch Screen
Without
Panel Weight
260/280g (Typ./Max.)
Application
8.4Inch High Brightness Tft Display 640 × 480 VGA 900Cd/M2 NL6448BC26-26C For Outdoor
Signal Interface
CMOS (1 ch, 6-bit) , 31 pins Connector
Input Voltage
3.3/5.0V (Typ.)
Environment
Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s²)
