12.1Inch High Brightness Display 1000cd/m2 -30 ~ 85 °C Lcd LVDS Screen G121XCE-LM1

Model Number : G121XCE-LM1

Place of Origin : China

MOQ : 1pc

Price : negotiable

Payment Terms : T/T

Supply Ability : 2000pcs/month

Delivery Time : 5-8 working days

Packaging Details : original factory packing

Size : 12.1inch

Resolution : 1024(RGB)×768, XGA

Luminance : 1000 cd/m² (Typ.)

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Interface Type : LVDS (1 ch, 6/8-bit) , 20 pins Connector

Operating Temperature : -30 ~ 75 °C

Storage Temperature : -40 ~ 80 °C

Backlight Life : 50K hours

Application : Industry Application

Contact Now

12.1Inch Resolution1024(RGB)×768, XGA Luminance1000 cd/m² Operating Temperature: -30 ~ 85 °C LVDS Lcd Panel G121XCE-LM1

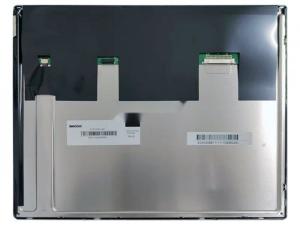

G121XCE-LM1 is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of -30 ~ 75°C , a storage temperature range of -40 ~ 80°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: Wide Temperature, Ultra High Brightness, WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, U/D,L/R Reverse, 6/8 bit, Matte . Based on its features, JB recommend that this model be applied to industrial etc.

12.1Inch High Brightness Display 1000cd/m2 -30 ~ 85 °C Lcd LVDS Screen G121XCE-LM1
